The Difference Between T-slot and V-slot

Several major industries rely on aluminum framing to create durable, custom workplace materials. t-slot profiles are a popular modular framing type, but they are not the only type of aluminum profile available.

Under the right circumstances, V-slot profiles can do the job better than T-slot profiles. To simplify the subject, this article will break down the differences between T-slot and V-slot profiles. By taking the time to understand this information, you can make the most of your aluminum framing system in the workplace.

The difference between T-slot and V-slot profiles has nothing to do with T-nuts or brackets - these components are suitable for either profile variation. Bearing or fitting compatibility will vary, but T-nuts and brackets are more versatile.

1. Shape distinction

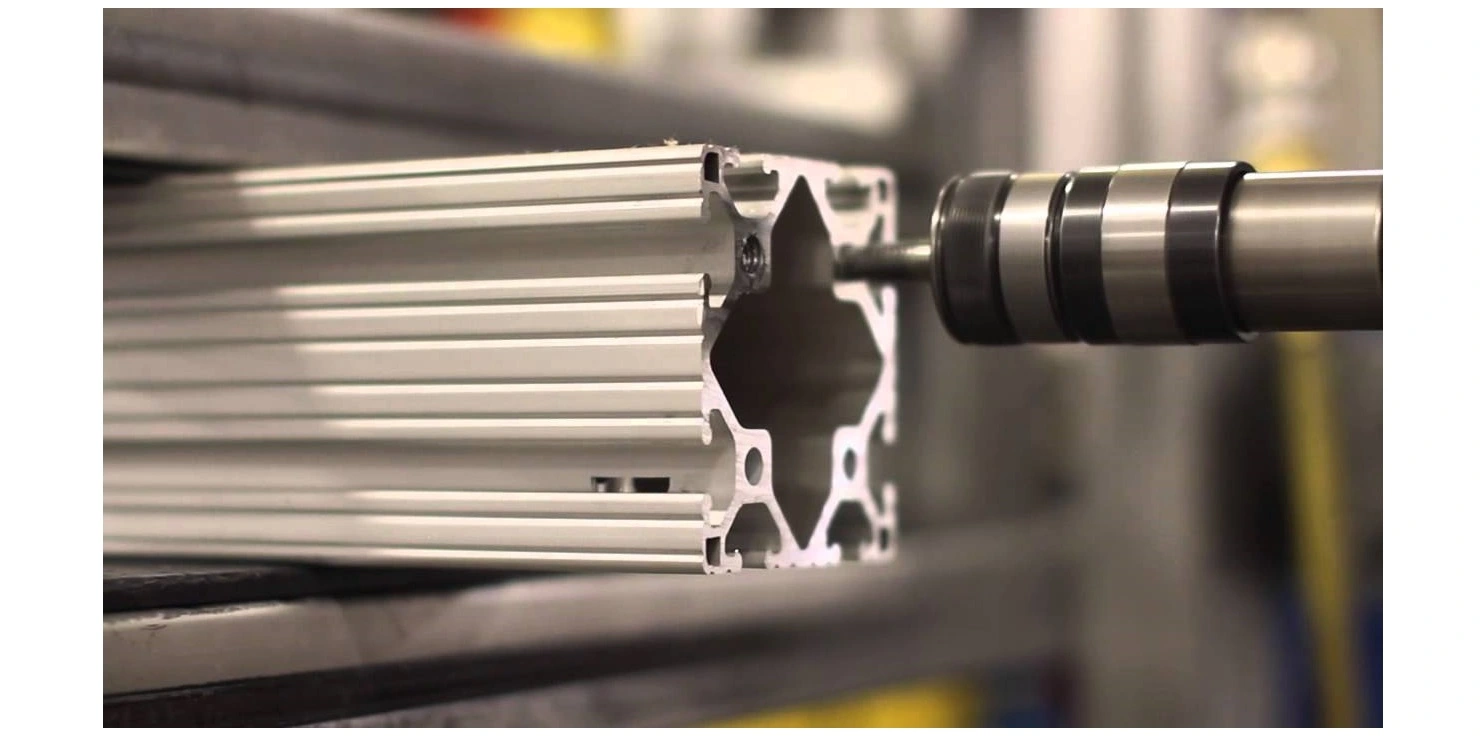

The shape of the T-slot aluminum profile makes it easy and cost effective to assemble structures for a variety of applications from desks to machine guarding. When using V-groove profiles, the assembly process is also simple and cost-effective. However, the unique feature of the V-groove profile is that you can easily slide the wheels into the frame. the V-groove can act as a linear guide by allowing the wheels to slide inside, providing simpler and more cost-effective motion control. These may all sound like small differences, but they are critical factors to consider. The wrong profile will result in a final product that does not meet your workplace needs. If you could benefit from a liner guide, a T-slot will not get the job done. Likewise, special parts (such as the bearings or fittings mentioned above) are not interchangeable between T-slots and V-slots.

2.Application distinction

Application Suitability: T-slot profiles are generally used for static structures, such as frames and enclosures. V-slot profiles, on the other hand, are designed for applications that involve linear motion, making them ideal for 3D printers and CNC machines.

Choosing between T-slot and V-slot aluminum profiles depends on the specific requirements of your project. T-slot profiles offer flexibility, strength, and a wide range of accessories for building static structures. V-slot profiles, with their integrated linear motion capabilities, are ideal for applications involving precise movement.

By understanding the differences between these two types of profiles, you can make an informed decision and ensure that your project meets both functional and budgetary requirements. Whether you're constructing a custom frame or designing an automated system, selecting the right profile will contribute to the success and efficiency of your project.If you want to know more about aluminum profiles, please feel free to contact the Jiahua Aluminum sales team. We will provide you with more aluminum profile solutions.
