What is Aluminum Extrusion?

Aluminum extrusion is a manufacturing process used to create objects with a fixed cross-sectional profile by forcing aluminum billets or ingots through a shaped die.  This die acts as a mold, shaping the aluminum into the desired profile as it passes through.

Here's an overview of the aluminum extrusion process:

Billet Preparation:

The process begins with aluminum billets, which are cylindrical logs of aluminum alloy.  These billets are heated to a specific temperature to make them more malleable for extrusion.

Extrusion:

The heated billet is loaded into the extrusion press.  A ram applies pressure to the billet, forcing it through a shaped opening in the die.  The die is custom-designed to produce the desired cross-sectional profile of the final product.

Cooling and Cutting:

As the aluminum passes through the die, it takes on the shape of the profile.  It emerges from the die as a continuous length of aluminum with the desired cross-section.  The extruded aluminum is then cooled using air or water and cut to the desired length.

Aging and Finishing:

 After extrusion, the aluminum may undergo additional processes such as aging to enhance its mechanical properties.  It may also be subjected to surface treatments such as anodizing, painting, or powder coating to improve corrosion resistance, aesthetics, and surface finish.

Fabrication:

Once extruded, the aluminum profiles can be further fabricated through processes such as machining, bending, welding, and assembly to create finished products.

Aluminum extrusion offers several advantages, including:

Design Flexibility: Almost any complex cross-sectional profile can be created with extrusion, allowing for versatile designs.

Cost-Effectiveness: Extrusion is a cost-effective manufacturing process, especially for producing large quantities of consistent profiles.

Lightweight and Strong: Aluminum extrusions offer a high strength-to-weight ratio, making them suitable for a wide range of applications.

Corrosion Resistance: Aluminum naturally forms a protective oxide layer, providing excellent corrosion resistance, especially when further treated with surface finishes.

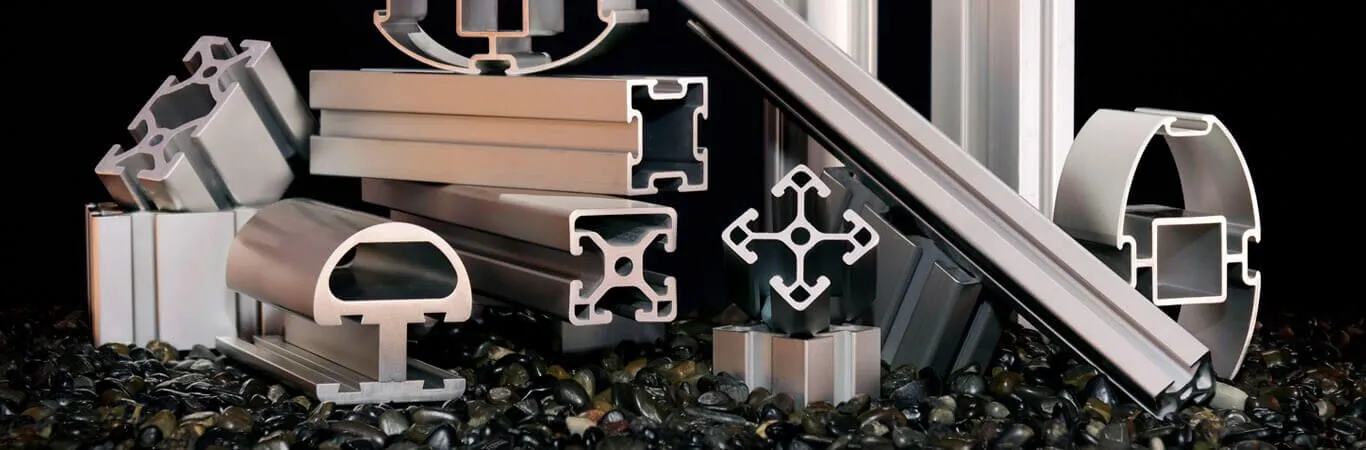

Aluminum extrusion is widely used in various industries, including construction, automotive, aerospace, electronics, and consumer goods, to create products such as window frames, doors, automotive parts, heat sinks, and structural components.
